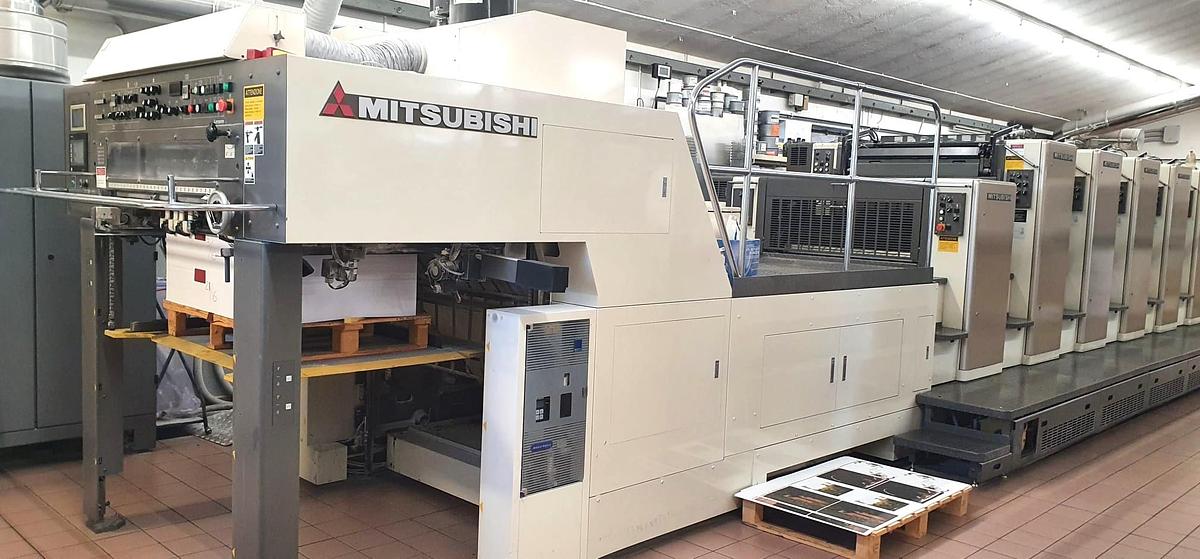

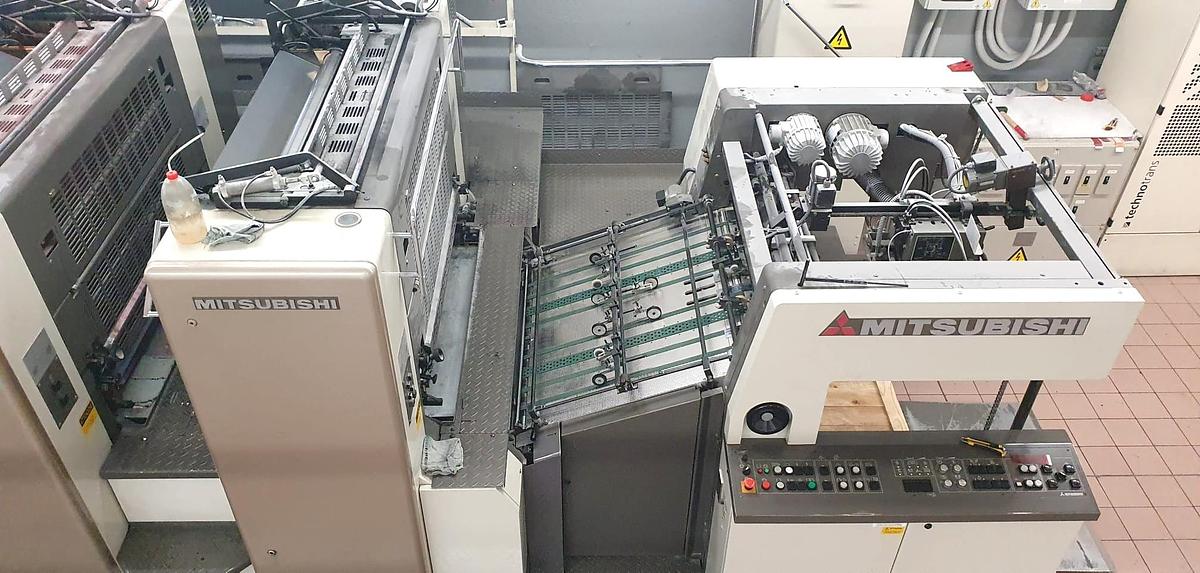

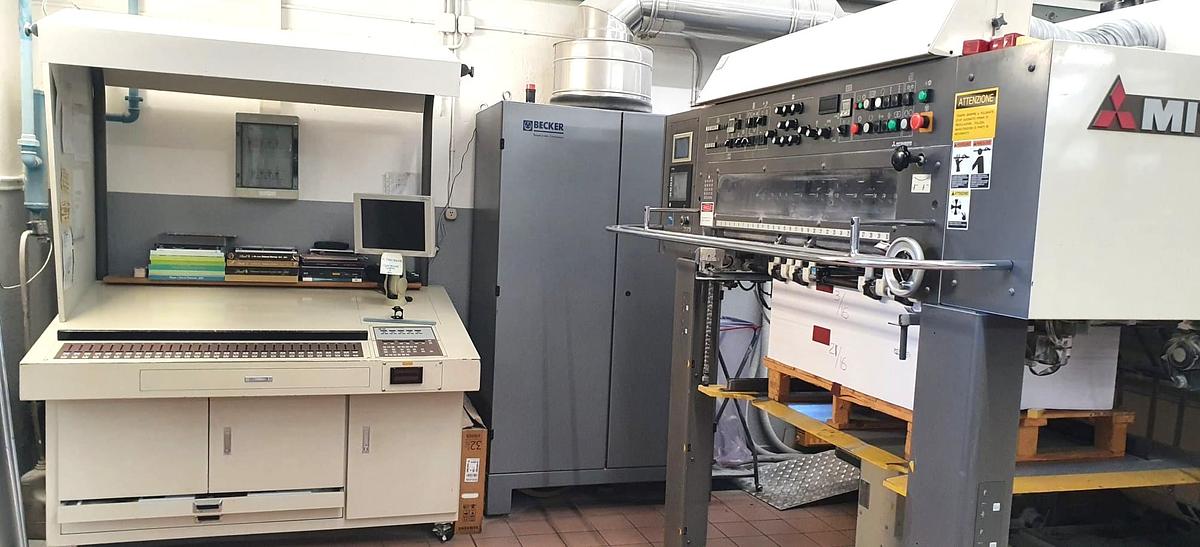

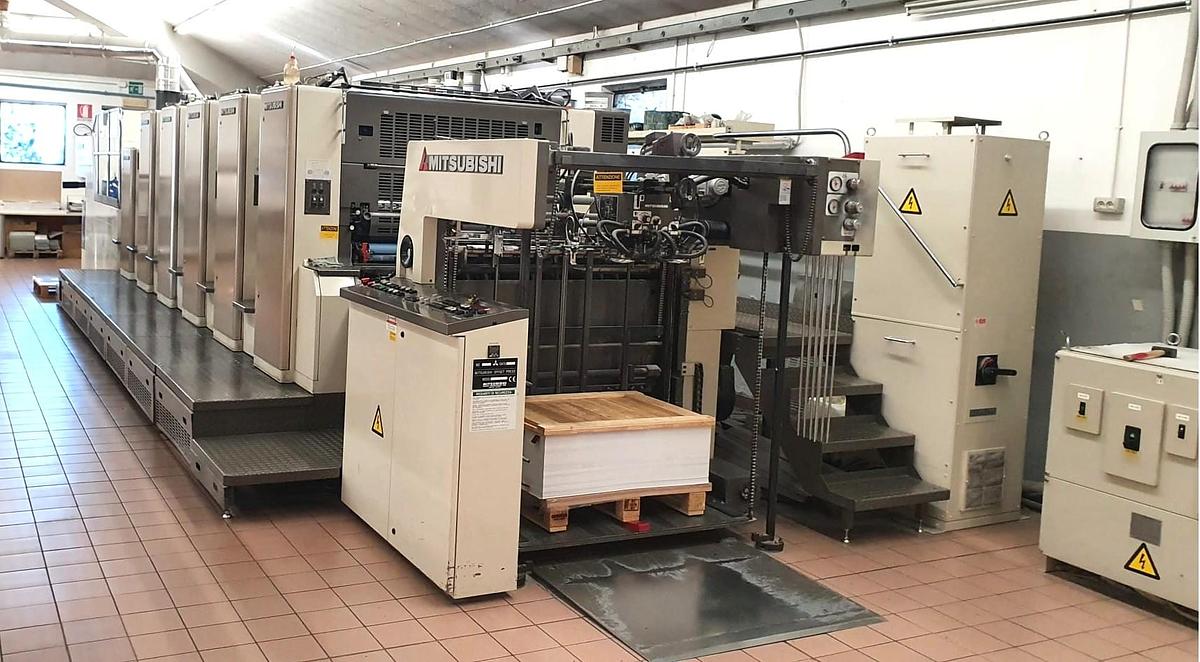

Mitsubishi D3000S-5 TC/ED

Single owner with meticulous Mitsubishi Maintenance and only 107 mil.of copies.

Enter production only 23 March 2010.

Equipped with:

- IPC II remote control for ink fountains and registers (axial, circumferential, and diagonal movement).

- Trivalent alcohol film dampening Mitsubishi.

- Alcohol circulator cooler with grinding temperature control.

- Semi-automatic plate change.

- Automatic paper thickness and format presetting.

- Blanket, roller and cylinder automatic washers.

- Non-stop sheet feeder.

- Chrome-plated printing cylinders.

- Ink Declutch (on the 1st and 5th printing units).

- Chamber doctor blade coating unit (TC) with two anilox rollers.

- Extended delivery (ED).

- Grafix IR/HA dryers.

- Grafix powder spray.

- Thickness: 0.04 – 0.6 mm.

- Format: 720 x 1020 mm

Available: immediate.

Visible: in production.

Condition: Excellent.

Description: Clean machine in good printing condition (single owner).

Note: IPC II (Intelligent Press Control) is a next-generation control terminal offering a fully compatible digital interface. Capable of interpreting diverse data across multiple digital networks, it easily performs printing operations with the help of a step-by-step display. From the control panel, the operator has direct access to all machine functions, from preparation and print start-up operations to quality control and fault diagnosis, with a simple touch of the screen. The IPC enables free data exchange between prepress and production management systems and allows the retrieval and storage of data generated in these systems, such as printing parameters, sheet format, ink fountain settings, and other settings. Furthermore, the IPC offers a fault diagnosis support function to quickly assist operators in determining the causes of press stoppages. It includes six software packages designed to optimize ink control before, at the end, and throughout the entire printing cycle. One of these software is Quick Start Inking (QSI) which, based on the image to be printed, guarantees the optimal thickness of the ink film before the cycle starts. 15" color TOUCH SCREEN video. Memory capacity up to 5,000 jobs. Functions: start-up and production control; sheet format; printing pressure; trivalent dampening; ink/varnish concentration.

"Expert" software:

QSI determines the optimal ink film thickness based on the image to be printed before starting the cycle.

WiZARD schedules printing based on preset job start and end parameters.

* Production management * Maintenance * Troubleshooting * Automatic quick start * Waste reduction (up to 25 sheets) * Storage for up to 5,000 jobs * Network connection with (if present) PPC Server, IPC Server, MCCS II, and MAX-net * Ready to receive CIP 3/4 files *

WHAT YOU SHOULD KNOW

1. Only one Italian owner.

2. Never had any accidents or major maintenance.

3. Chrome-plated cylinders, without any visible repairs.

4. Excellent condition, will be dismantled after a technical inspection.

5. Visible in production with the possibility of testing printing.

6. Speed 13,000 s/h.

7. Paper thickness 0.04 - 0.4 mm.

8. Printing plate 800 x 1030 mm.

9. Length approx. 13.420 mm.

10. Width approx. 3.800 mm.

The Mitsubishi brand has been known in the graphics industry for decades for its great reliability. The DIAMOND series was introduced in 2002 and updated at Drupa in 2004. The various D3000 model variants are still fully functional, and spare parts are readily available. Trust the professionalism and experience of WGM. You'll have a company ready to offer you the right solution for your needs.
